Ball valves BVPE

(For petroleum products with electric actuator)

Designed for use as a shut-off device on pipelines transporting natural gas of high pressure in accordance with GOST 5542.Shutoff class is A according to GOST 9544 of the Republic of Belarus.

The valves are available in flange version. Specifications of valves “BVPE” comply with the standard API (American Petroleum Institute).

Power supply of valve actuator is provided from single-phase network of alternating current of the voltage of 220 V, and of the frequency of 50 Hz. Electronics power supply (control signals) is 24 V of direct current. The body of ball valves are cleaned with shot-blasting and covered with two layers of zinc before painting.

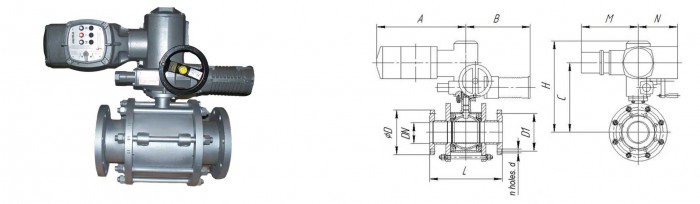

Overall dimensions

5

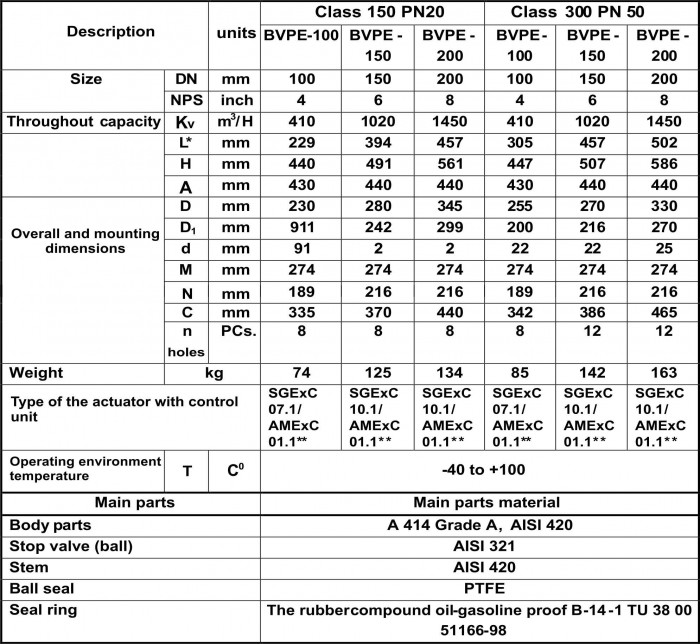

Specifications

6

*Production of valves of other construction lengths is possible by agreement with the customer.
** The actuator is explosion-proof. Made by German companyAUMA. Example of designation: ball valve for petroleum products with electric actuator, nominal diameter DN 100, nominal pressure PN20 – Valve BVPE-100 PN20

The certificate of conformity of the customs Union (Russian Federation, Republic of Belarus, Republic of Kazakhstan) dated 10.03.2015 (ISO 90001).
